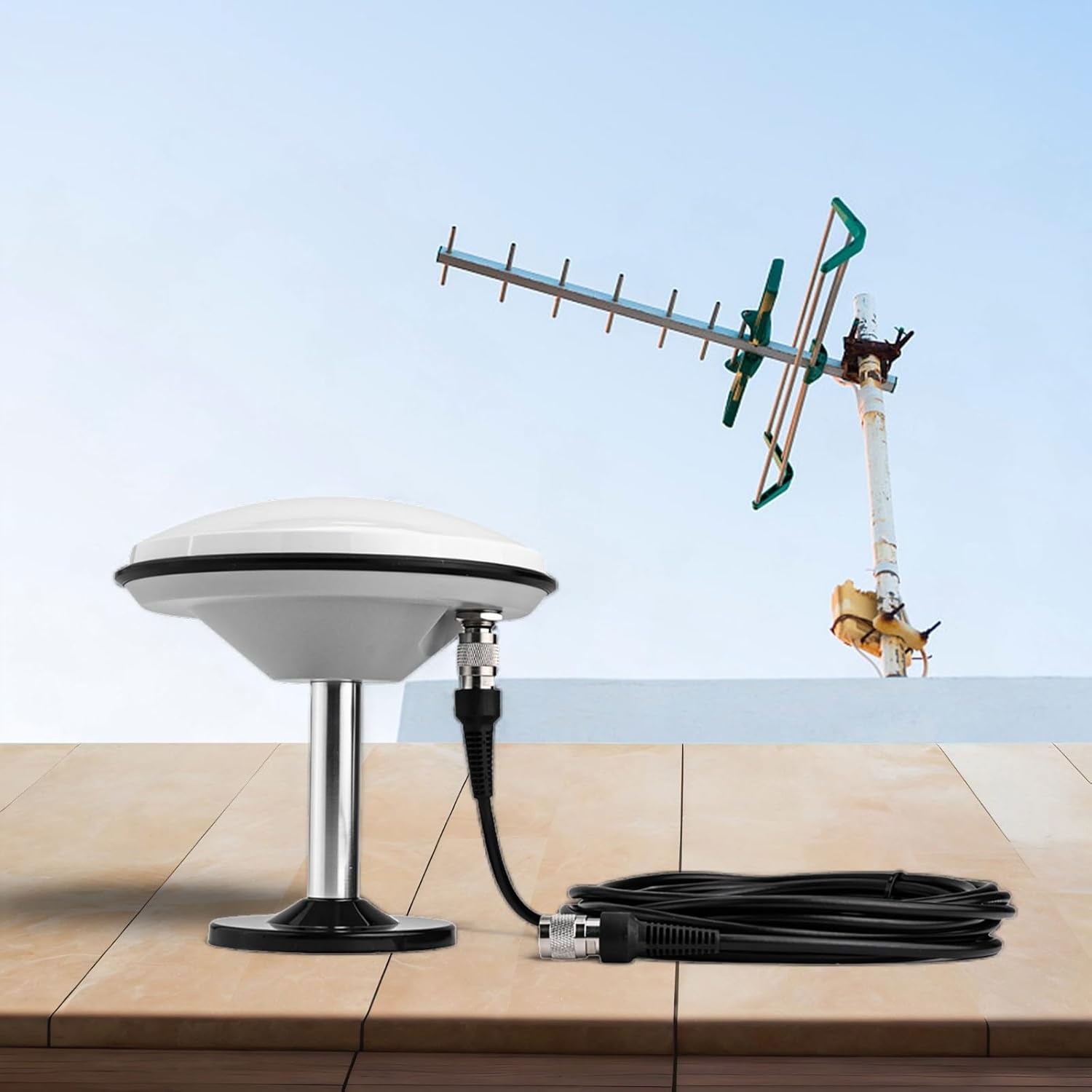

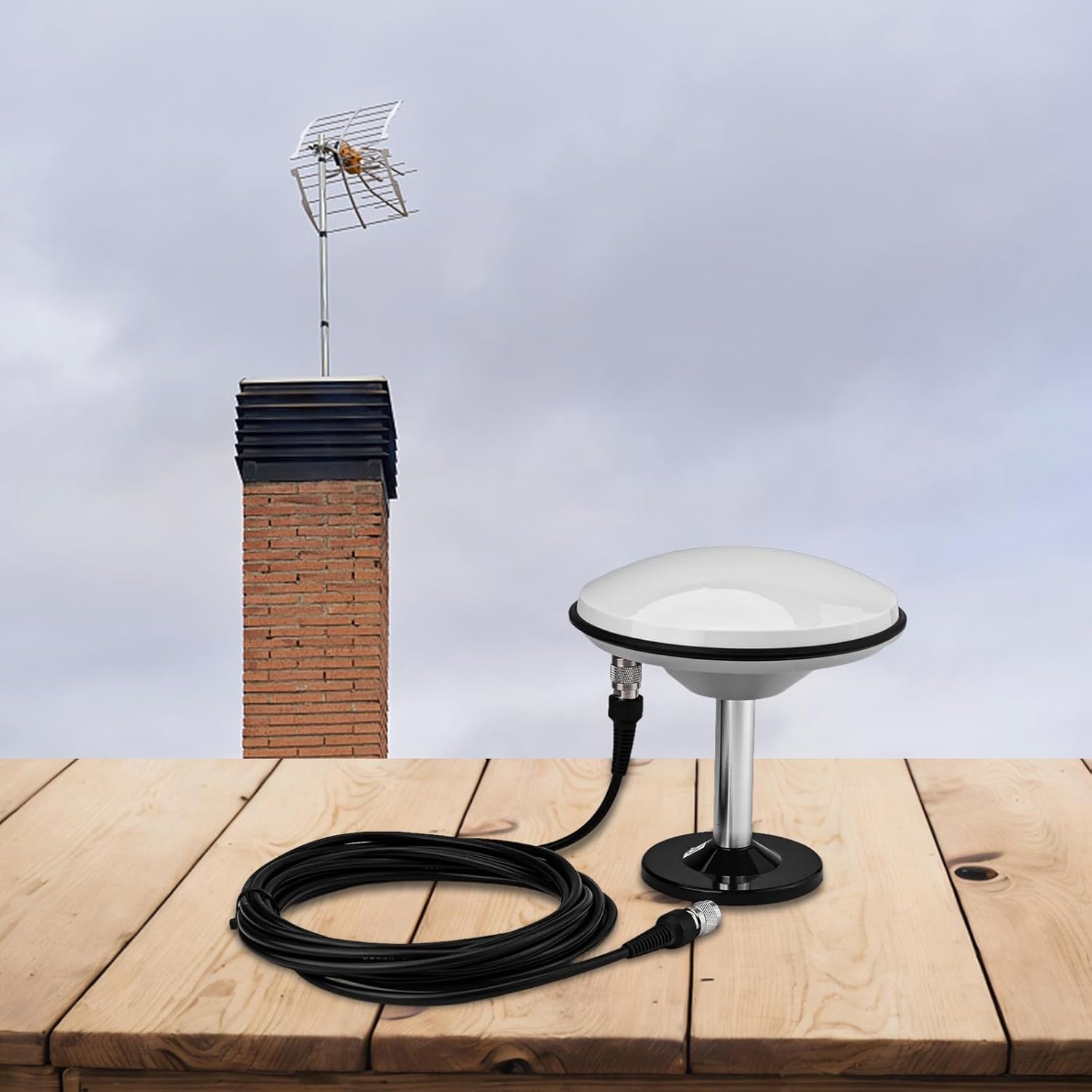

1 Set L1 L2 GNSS Antenna Agriculture GPS, RTKs F9P GPS GLO BDS GAL, Waterproof High Precisions GNSS RTKs, M90SD Magnetic Base Signal Cable Set(Antenna+Cable S MA)

Features:* * STARF-107 can receive signals in GPS, GLONASS, Gali-leo and Beidou frequency bands. The antenna has the characteristics of high gain, good gain at low elevation angles, wide-angle circular polarization, and stable phase center. It is suitable for four-, high- for precision surveying and mapping fields, and is widely used in geodetic surveying, road construction, survey, terminal container operations and other occasions.* The antenna part adopts a multi-feed point design to for ensure that the phase center and the geometric center coincide, minimizing the of the antenna on measurement errors;* The antenna unit has high gain and beam width in the pattern, which ensures the reception of signals at low elevation angles and can still search for stars normally under some serious obstruction conditions;* High and low temperature resistance, waterproof, anti- cover to protect the antenna* long term working in the field.Specification:Type (optional): STARF-107+M90SD+cable for SMA, STARF-107+M90SD+cable TNCMaterial: ASA+Color: as shown in the pictureWorking frequency: GPSL1/L2 BeiDouB1/B2/B3 GLONASSG1/G2 Gali-leoE1/E5bPolarization type: RHCPImpedance: 50ΩHorizontal coverage angle: 360°Output standing wave ratio: ≤1.5Antenna AR: ≤3dBPhase center error: ≤3mmLow Noise Amp lifier Specificationsfor LNA gain: 40±2dBNoise figure: ≤1.5dBOutput standing wave ratio: ≤1.5Working voltage: +3V~+16VWorking current: ≤50mAConnector: TNC-K (female), supports customizationAntenna size (mm): Ф151.6mm×63mmWorking temperature (℃) -40℃: ~+70℃Storage temperature (℃) -55℃: ~+85℃Waterproof grade: IP67Size: as shown in the picturePackage Contents:1 x STARF-107 antenna1 x M90SD magnetic base1 x 5m signal cable

• 【High Gain and Wide-Angle】STARF-107 GNSS antenna receives signals in GPS, GLONASS, Gali-leo, and Beidou frequency bands. With high gain and good gain at low elevation angles, it ensures stable reception even in obstructed conditions.
• 【Accurate and Reliable】Multi-feed point design ensures the phase center and geometric center are aligned, minimizing measurement errors. Ideals for high-precision surveying, road construction, and oceans survey.
• 【Durables and Waterproof】Designed to withstand high and low temperatures, the antenna is waterproof and features anti-UV cover for long-term field use. It can endure various working environments.
• 【Easy Installation and Customization】Comes with a magnetic base and signal cable for convenient installation. Supports customization of TNC-K connectors for added flexibility.
